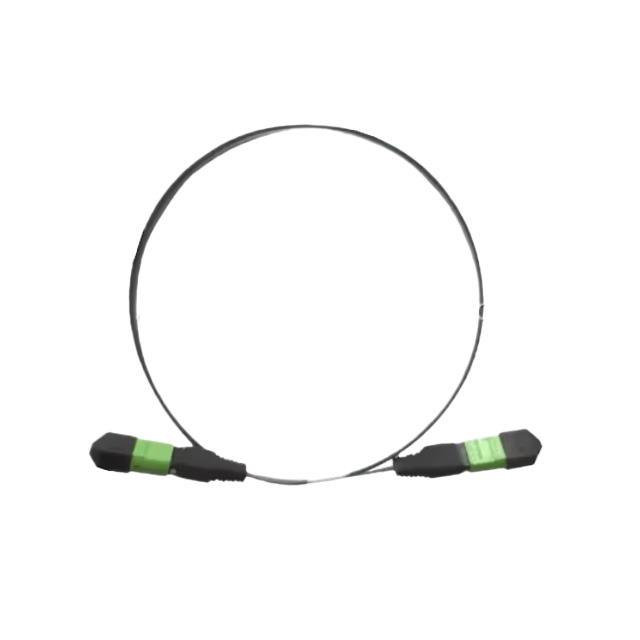

MPO MTP
Ritano-optics
PVC or LSZH
U.S. Corning Fiber or Chinese Corning Fiber or YOFC Fiber
Green or custom order the boot color, that's 12 colors are available
YES
| Quantity: | |
|---|---|
Product Description
1.What is the Patch cord features?
* Low insertion loss, high return loss
* Excellent mechanical endurance
* High reliability and stability
* Good repeatability and exchangeability
2.What is the Patch cord applications?
* FTTX + LAN
* Optical fiber CATV
* Optical communication system
* Telecommunication
3.Ordering Information:
* Ceonnector type:FC,SC,LC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4,SMA
* Ferrule End-face:PC,SPC,UPC,APC
* Core Type:Single-mode(SM:9/125um),Multi-mode(MM:50/125um or 62.5/125um)
* Cable Quantity:Simplex,Duplex
* Cable Diameter:Φ3.0mm,Φ2.0mm,Φ0.9mm
* Cable Length:1,2,3 meter or customized
* Cable Type:PVC,LSZH,OM3,OFNR,OFNP,Plenum,Armoured...
* Color:Yellow,Orange,Green,Gray,Red,Purple...
4.Specification Information:
Parameter | type | PC | SPC | UPC | APC |
Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
Mating Durability(500 timer) | Additional Loss≤0.1dB, Return Loss Variability<5dB | ||||
Temperature Stability(-40°C~85°C) | Additional Loss≤0.2dB, Return Loss Variability<5dB | ||||
Operating Temperature | -40°C~+85°C | ||||
