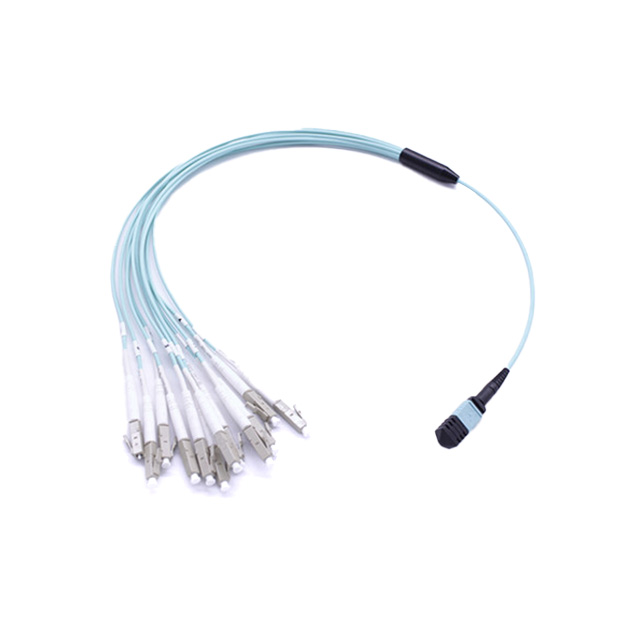

MPO-LC-12FO-OM3-Length 10M
OEM
Cat 1
| Quantity: | |
|---|---|
Product Description
Features:
* Single mode and Multimode
* Zirconia sleeves or Phosphor bronze sleeves
* NTT standard compatible
* Available without flanges or with flange for duplex, saving panel space
* SC2 8Port high density for patch panel mount applications
* Meet JIS5974 and bellcore GR-326 standard
* Compliant with IEC874-14 & IEC874-19
* All parts compliant with ROHS
Applications:
* Telecommunication
* CATV
* LAN & WAN
* Network
* Broadband
* FTTH
Specifications:
Parameter | Unit | FC,LC,SC | ST,MU | MTRJ,MPO | |||||||
SM | MM | SM | MM | SM | MM | ||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | |||||||
Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
Operating temperature | °C | -40~+75 | -40~+75 | -40~+75 | |||||||
Storage temperature | °C | -45~+85 | -45~+85 | -45~+85 | |||||||
Cable diameter | mm | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 | |||||||
Ordering information:
* Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
* Ferrule type(for APC): Stepped; Conical
* Boot type: slotted boot, smooth boot. Boot size: 0.9mm; 2.0mm; 3.0mm
* Boot color: Beige; Black; Blue; Grey; Red; White; Yellow
* Housing Color: Beige; Blue; Red
What Ritano can offer:
* Quality always comes first
* Standard quality tests check of all types of products before shipment
* Responsible for after-sales service
* Aiming to get repeat orders from 90% customer after the trial orders
* Making progress with customers together
