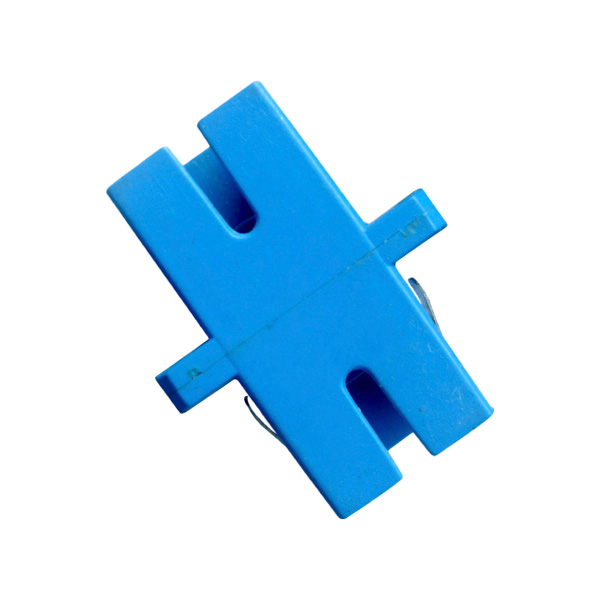

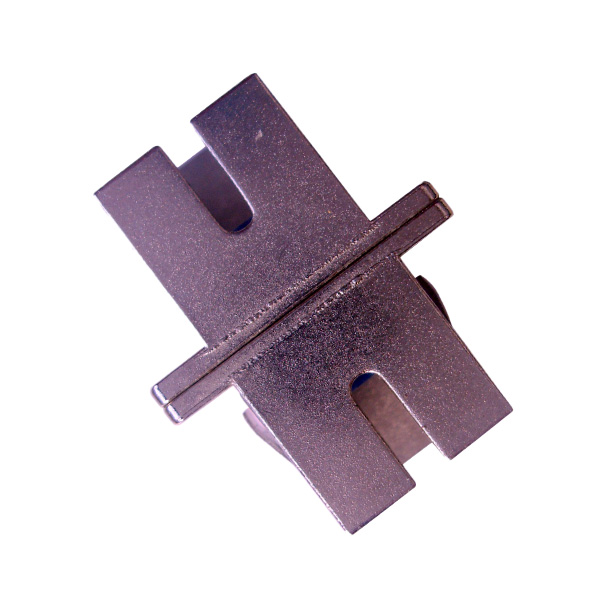

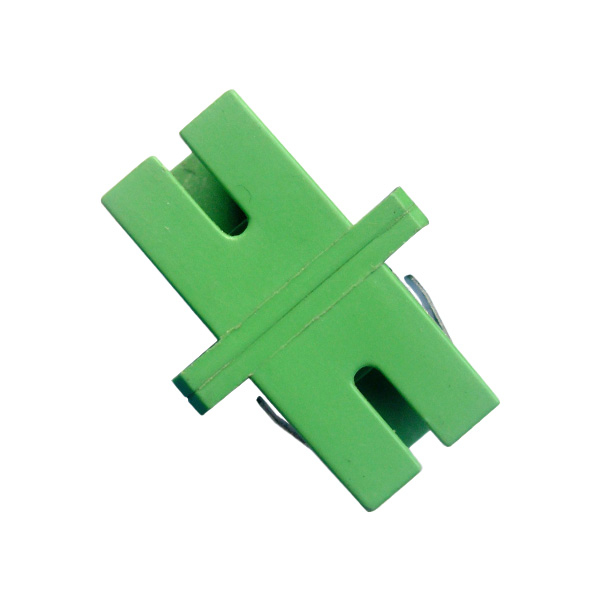

SC Adapter

SC Adapter is a type of fiber optic connector used in fiber optic communication systems to enable connections between optical fibers or between optical fibers and equipment.

Availability:

Quantity:



Inquire

Product Description

Features

* Single mode and Multimode

* Zirconia sleeves or Phosphor bronze sleeves

* NTT standard compatible

* Available without flanges or with flange for duplex,

saving panel space

* SC2 8Port high density for patch panel mount applications

* Meet JIS5974 and bellcore GR-326 standard

* Compliant with IEC874-14 & IEC874-19

* All parts compliant with ROHS

Application

● Telecommunication

● CATV

● LAN & WAN

● Network

● Broadband

● FTTH

Specification

Type	SINGLEMODE(Zroz)	MULTIMODE(P.B)
Insertion Loss	≤0.2dB	≤0.3dB
Return Loss	≥45dB	-- --
Mating Durability(500 timer)	Additional Loss≤0.1dB,Return Loss Variability<5dB
Temperature Stability(-40℃～85℃)	Additional Loss≤0.2dB,Return Loss Variability<5dB
Operating Temperature	-40℃～+85℃	-40℃～+85℃
