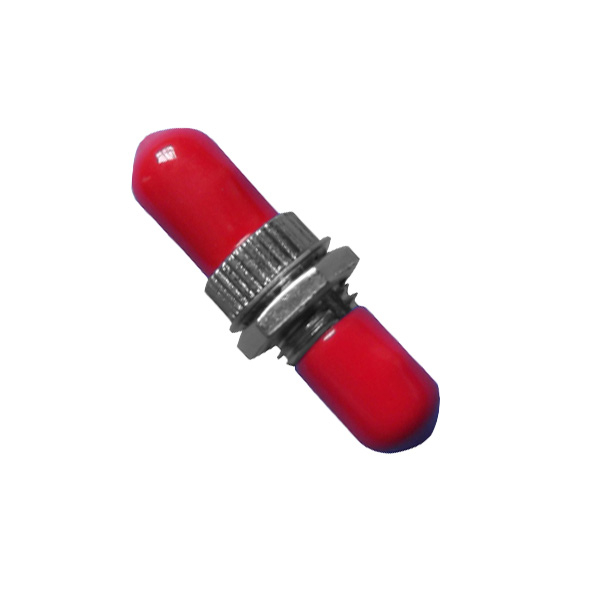

ST Adapter

The ST fiber optic adapter is a component belonging to the field of optical passive components, used for realizing optical signal splitting/combining or extending optical fiber links. Its primary function is to connect two fiber optic connectors, ensuring efficient transmission of optical signals.

Availability:

Quantity:



Inquire

Product Description

Features

* Single mode and Multimode

* Ceramic sleeve or phosphor bronze sleeve

* NTT standard compatible

* Available without flanges or with flange for duplex,

saving panel space

* Meet JIS5974 and GR-326 standard

* Meet IEC874-14 and IEC 847-19 standards

* Conform to ROHS standards

Application

● Telecommunication

● CATV

● LAN & WAN

● Network

● Broadband

● FTTH

Specification

Type	SINGLEMODE(Zroz)	MULTIMODE(P.B)
Insertion Loss	Type 0.4 dB, Max 1dB	Type 0.2 dB, Max 0.5dB
Return Loss	50dB, Min 40dB	30dB , Min 20dB
Inserted number（500 times）	Additional Loss≤0.1dB,Return Loss Variability<5dB
Temperature stability	Additional Loss≤0.2dB,Return Loss Variability<5dB
Working temperature	-40℃～+85℃
Storage temperature	-40℃～+85℃

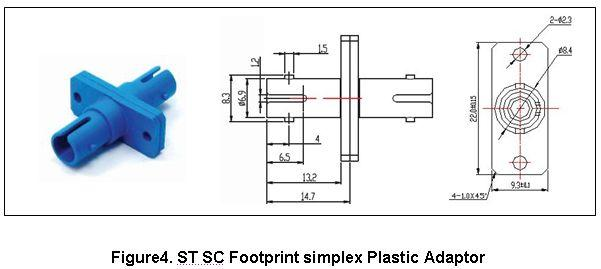

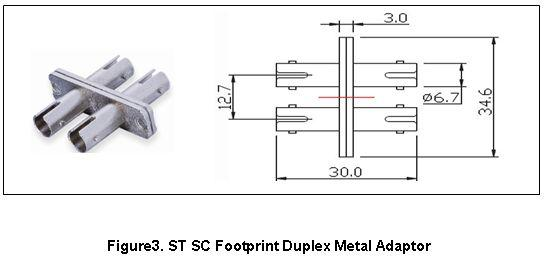

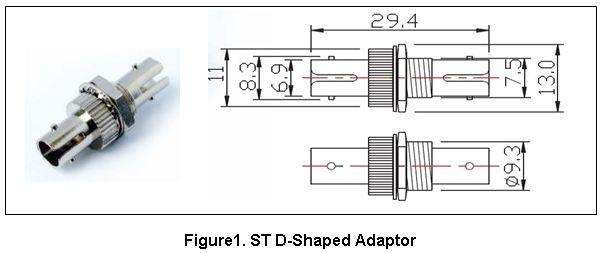

Appearance & Dimension

Customized Service
