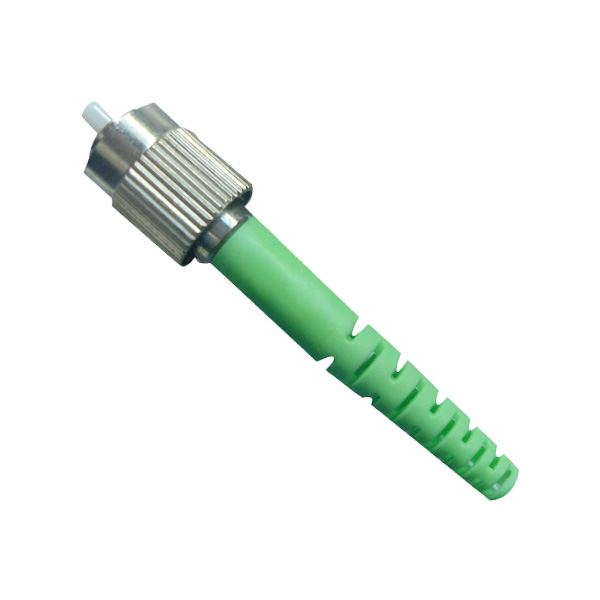

Product Description
Features
* Single core and dual core
* Meet ANSI, IEC, TIA/EIA, NTT and JIS
* UL-rated plastic housing and boot in a variety of colors
with 0.9mm, 2.0mm or 3.0mm
* Precision mechanical dimensions
* Zirconia ferrule PC or 8 degree APC diameter125~128um
high concentricity
* Single-mode, multimode and sphere PC
* Multi-piece type or one-piece type is available
Application
● Telecommunication
● CATV
● LAN & WAN
● Network
● Broadband
● FTTH
Specification
SINGLEMODE(Zroz) | MULTIMODE(P.B) | |
Insertion Loss | ≤0.3dB | ≤0.3dB |
Return Loss | ≥45dB | -- -- |
Mating Durability(500 timer) | Additional Loss≤0.1dB,Return Loss Variability<5dB | |
Temperature Stability(-40℃～85℃) | Additional Loss≤0.2dB,Return Loss Variability<5dB | |
Operating Temperature | -40℃～+75℃ | -40℃～+75℃ |
Appearance & Dimension
