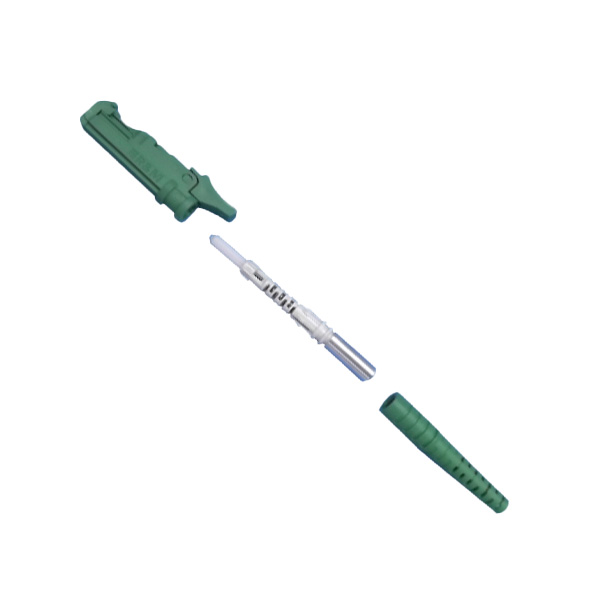

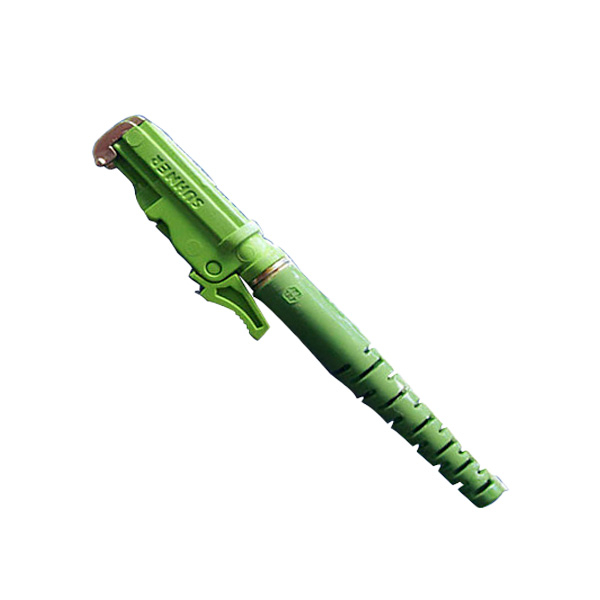

FIBER OPTIC COMPONENTS（E2000）

Product Description

Features

* Single mode, Multimode and Green APC

* NTT standard compatible

* Available without flanges or with flange for duplex,

saving panel space

* Meet JIS5974 and bellcore GR-326 standard

* Compliant with IEC874-14 & IEC874-19

* All parts compliant with ROHS

Application

● Telecommunication

● CATV

● LAN & WAN

● Network

● Broadband

● FTTH

Specification

Type	SINGLEMODE(Zroz)	MULTIMODE(P.B)
Insertion Loss	Type 0.4 dB, Max 1dB	Type 0.2 dB, Max 0.5dB
Return Loss	50dB, Min 40dB	30dB , Min 20dB
Inserted number（500 times）	Additional Loss≤0.1dB,Return Loss Variability<5dB
Temperature stability	Additional Loss≤0.2dB,Return Loss Variability<5dB
Working temperature	-40℃～+85℃
Storage temperature	-40℃～+85℃
