Product Description
Features

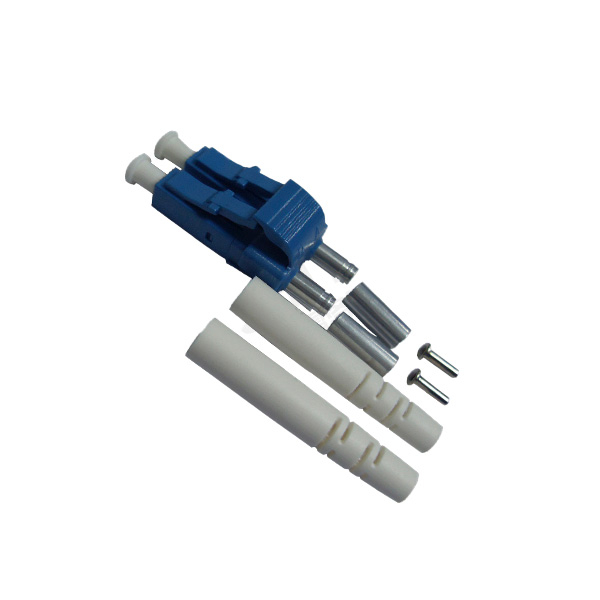

* LC Simplex or Duplex
* ANSI、IEC、TIA/EIA、NTT and JIS standard compatible
* UL-rated plastic housing and boot in a variety of colors with
0.9mm, 2.0mm or 3.0mm
* Precision mechanical dimensions
* Zirconia ferrule PC/APC diameter125~128um high concentricity
* Single mode, Multimode and Angle PC
* Multi-piece type or one-piece type is available
* All parts compliant with ROHS
Application
● Telecommunication
● CATV
● LAN & WAN
● Network
● Broadband
● FTTH
Specification
SINGLEMODE(Zroz) | MULTIMODE(P.B) | |
Insertion Loss | ≤0.3dB | ≤0.3dB |
Return Loss | ≥45dB | -- -- |
Mating Durability(500 timer) | Additional Loss≤0.1dB,Return Loss Variability<5dB | |
Temperature Stability(-40℃～85℃) | Additional Loss≤0.2dB,Return Loss Variability<5dB | |
Operating Temperature | -40℃～+75℃ | -40℃～+75℃ |
Appearance & Dimension
