LC adapter

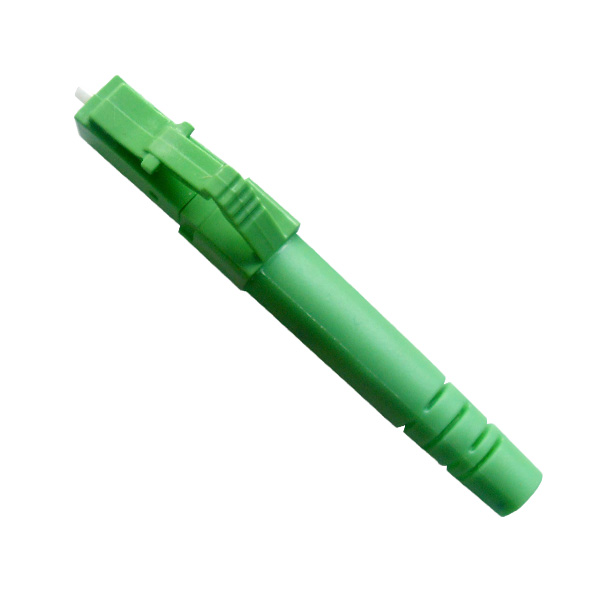

The companion component used with LC fiber optic connectors is the LC adapter. The LC fiber optic connector itself is a high-density, miniaturized optical fiber connector featuring a push-pull design, an anti-snag latch, and a label retention mechanism.

Availability:

Quantity:



Inquire

Product Description

Features

* Single mode and Multimode

* Zirconia sleeves or Phosphor bronze sleeves

* NTT standard compatible

*Available without flanges or with flange for duplex, saving panel space

* LC 8 Port high density for patch panel mount applications

* Meet JIS5974 and bellcore GR-326 standard

* Compliant with IEC874-14 & IEC874-19

* All parts compliant with ROHS

Application

● Telecommunication

● CATV

● LAN & WAN

● Network

● Broadband

● FTTH

Specification

Type	SINGLEMODE(Zroz)	MULTIMODE(P.B)
Insertion Loss	Type 0.4 dB, Max 1dB	Type 0.2 dB, Max 0.5dB
Return Loss	50dB, Min 40dB	30dB , Min 20dB
Inserted number（500 times）	Additional Loss≤0.1dB,Return Loss Variability<5dB
Temperature stability	Additional Loss≤0.2dB,Return Loss Variability<5dB
Working temperature	-40℃～+85℃
Storage temperature	-40℃～+85℃
